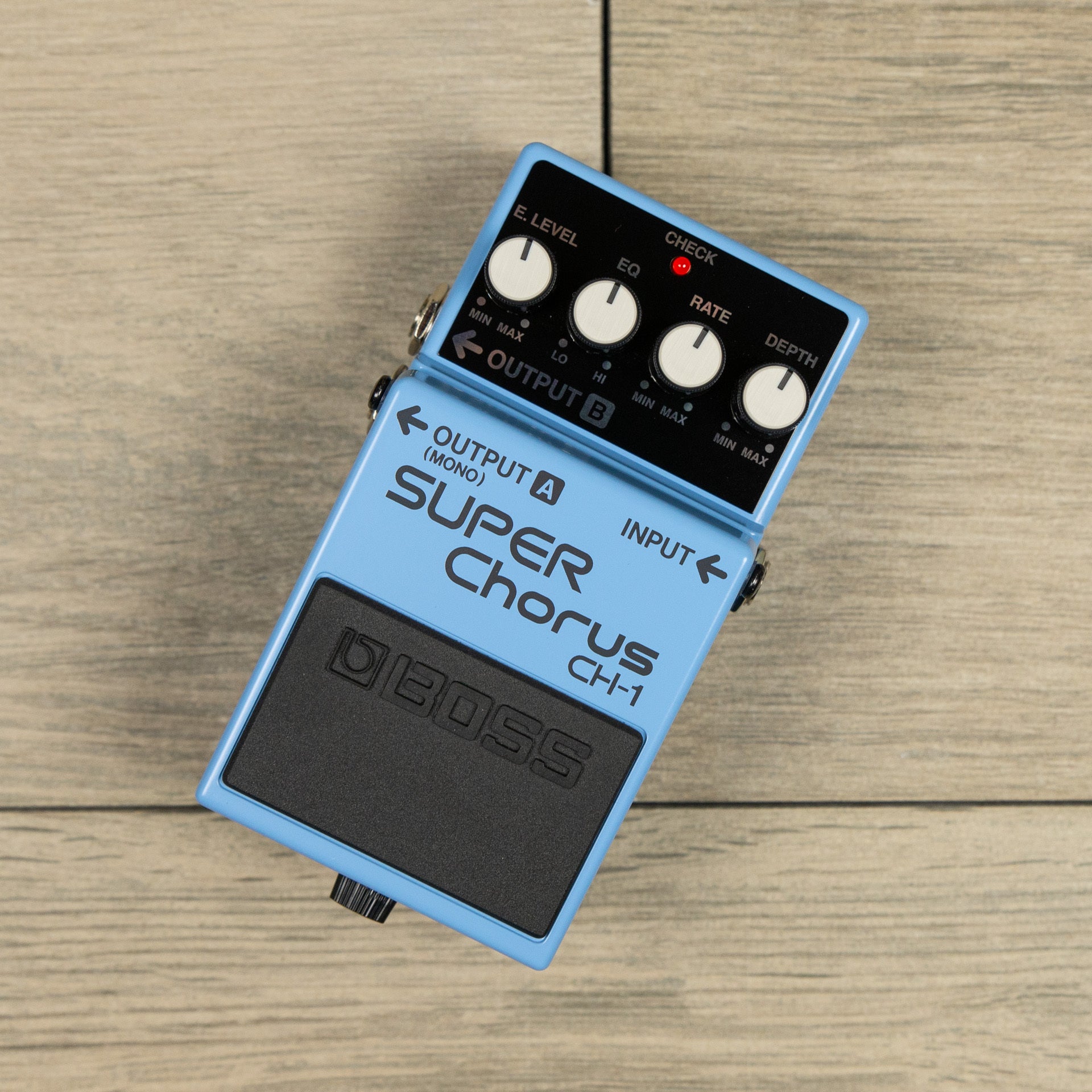

chorus pedal Boss CH-1 Super Chorus Pedal

chorus pedal Boss CH-1 Super Chorus PedalA UNIQUE STEREO CHORUS The CH 1 Super Chorus pedal delivers a clean classic chorus sound with crystal clear highs and a unique stereo effect, variable between left and right speakers. Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound Features Mono input and Stereo outputs for connection to dual amps BOSS five year warranty SPECIFICATIONS Nominal

A UNIQUE STEREO CHORUS
The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.

• Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
• Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
• Features Mono input and Stereo outputs for connection to dual amps
• BOSS five-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:

  • DEPTH knob
  • RATE knob
  • EQ knob
  • E.LEVEL knob
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:

  • INPUT jack: 1/4-inch phone type
  • OUTPUT A/B jack: 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 25 mA
• Expected battery life under continuous use:
  • Carbon: Approx. 11.5 hours
  • Alkaline: Approx. 26.0 hours
  • *These figures will vary depending on the actual conditions of use.
• Accessories:

  • Owner's manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight (including battery): 400 g(15 oz)
